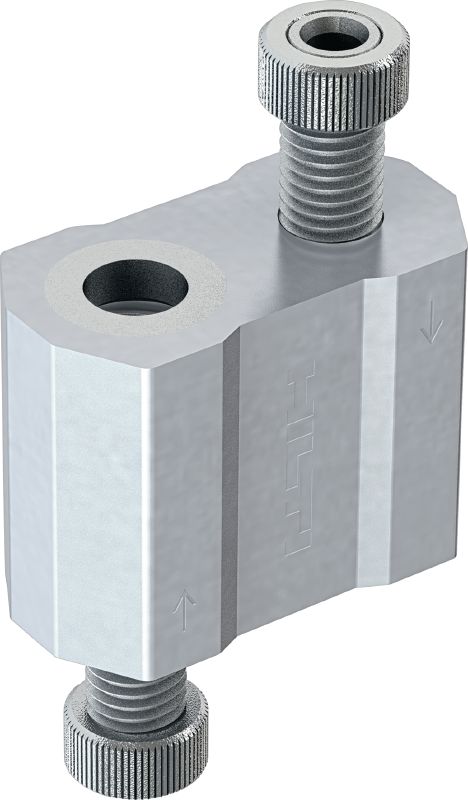

MW-L Cable lock
New productItem #r11827859
Adjustable wire lock for use with hanging MW wire rope
- Material composition: Aluminium
- Surface finish: n/a
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Share
Features & Applications
Features & Applications
Features
- Shorter installation time – wire suspension kits give you a much faster alternative to threaded rod
- Extra-secure wire locking – pre-mounted nuts can be tightened to help fix the wire rope securely in place
- Easier to adjust – self-closing wire lock can be adjusted tool-free, making levelling, retrofitting and long drop lengths much simpler
- Aesthetic – wire rope suspension is a discreet installation method for exposed building services and open soffits
- Compatible with Hilti strut channels and MVA ventilation hardware – you can get solutions for virtually every MEP installation from one supplier
Applications

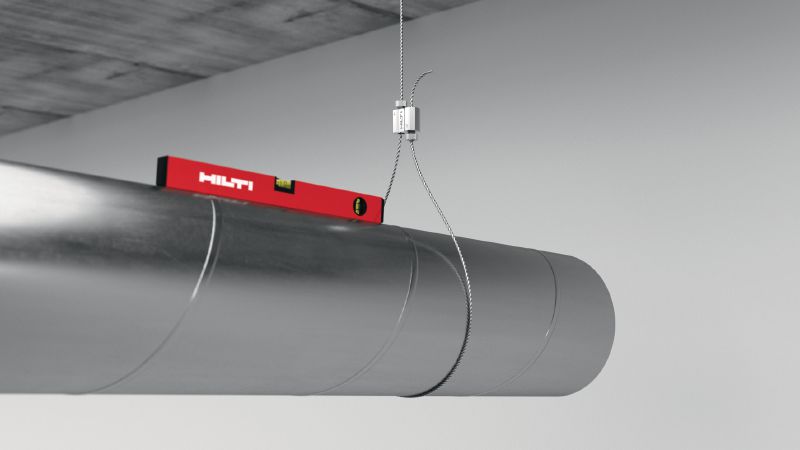

- Suspending HVAC fixtures, including spiral and rectangular ductwork (using compatible MVA duct hangers), from beams or eyebolts
- Lateral bracing
- Suspending electrical fixtures from beams or eyebolts – including cable trays, cable baskets, busbars or lighting
- Suspending architectural elements from concrete or steel – including acoustic, heating and cooling panels, as well as overhead grids
- Suitable for use in dry, indoor environments only
