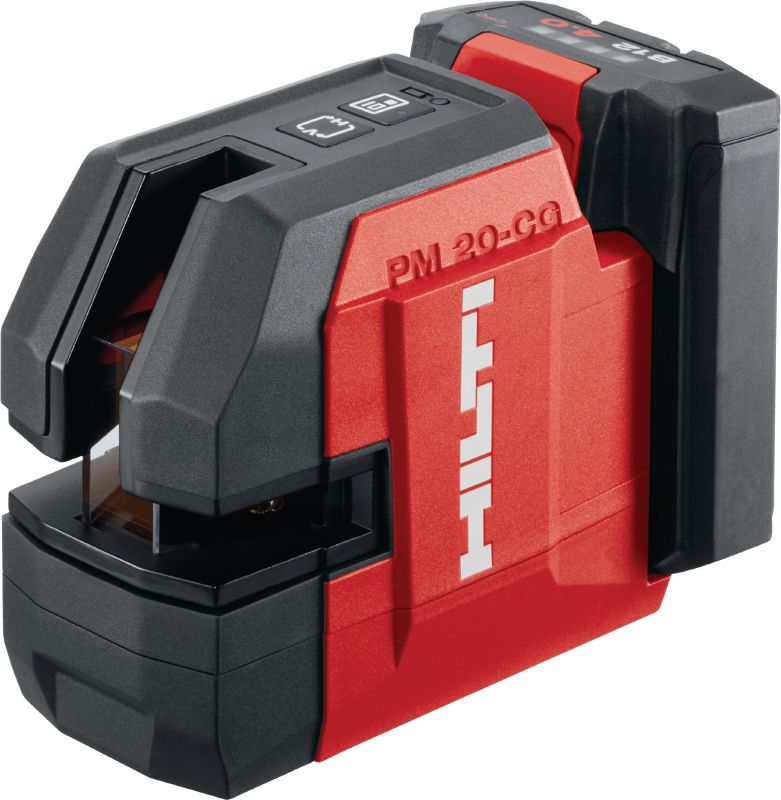

PM 20-CG 12V Plumb and cross line laser
New productItem #r13693123

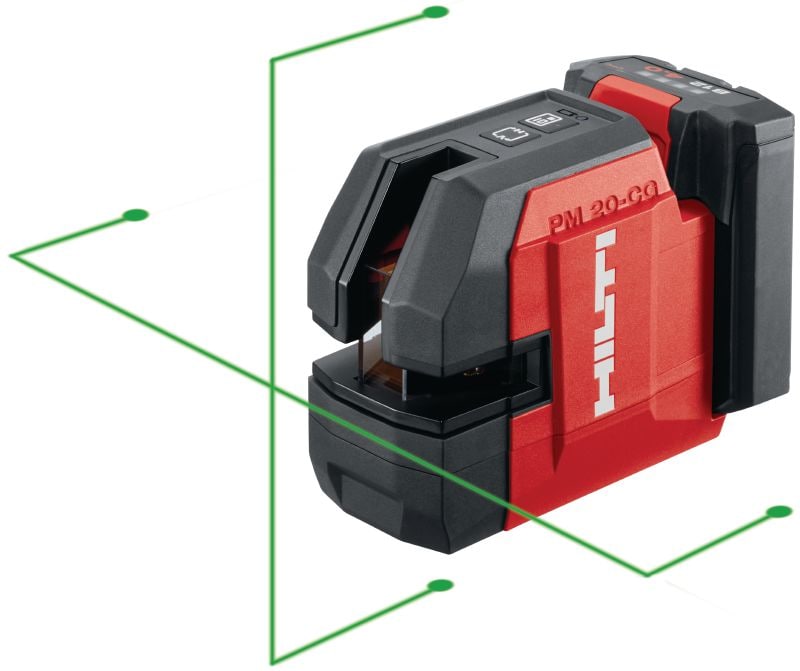

Green beam combi-laser with 2 lines and 5 points for plumbing, levelling, aligning and squaring (12V battery platform)
- Accuracy: ±3 mm at 10 m
- Max. operating distance (diameter): 40 m (Lines), 100 m (Lines, with receiver)
- Maximum operating time: 33 h
Share
Features & Applications
Features & Applications
Features

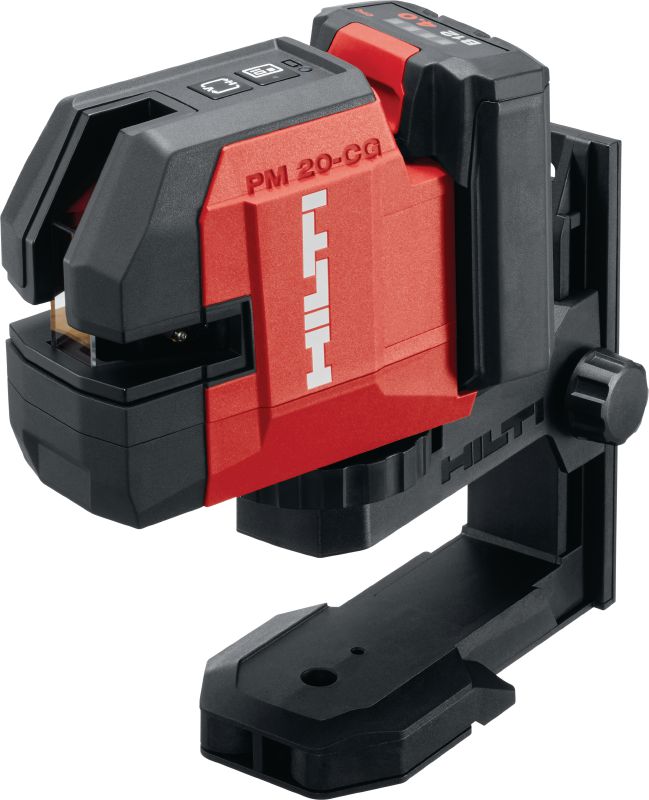

- High-speed layout – compact, self-levelling cross line laser with magnetic bracket so you can get started with minimal setup time
- Up to 5 days of continuous layout work per charge – powered by the same longer-lasting batteries as your other Hilti 12V tools

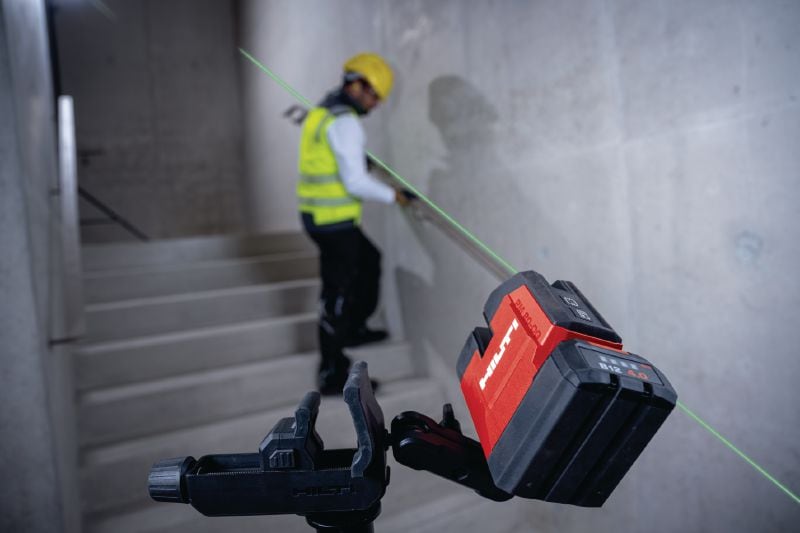

- Ultimate versatility – laser cross, five dots and slope mode make this line laser level suitable for virtually all alignment and layout work, even on inclines
- Better visibility up to 20 m – equipped with green beam for easier use indoors and in bright light
- Built for jobsite conditions – IP 54 rated protection against dust and moisture, and Class 2 laser which requires no special precautionary measures
Applications

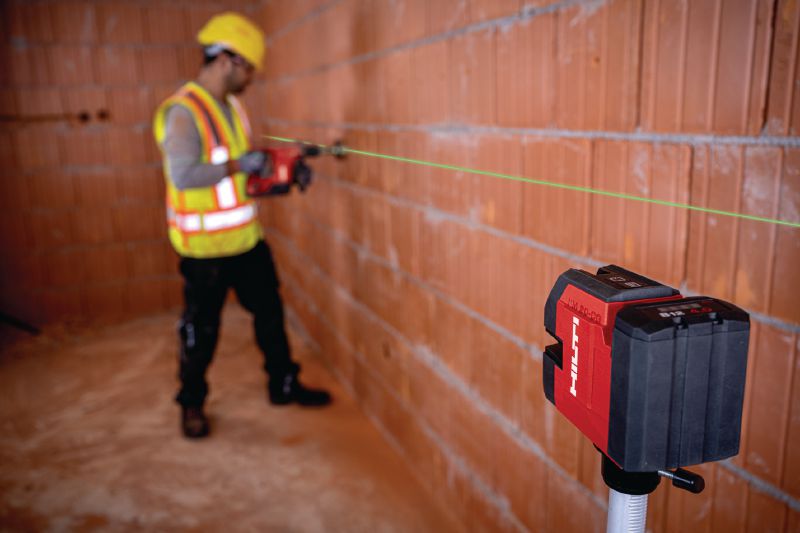

- Aligning pipes, cable trays, lighting and metal plasterboard track
- Levelling power outlets, cable trays, radiators and pipe installations
- Aligning and levelling doors, windows and handrails

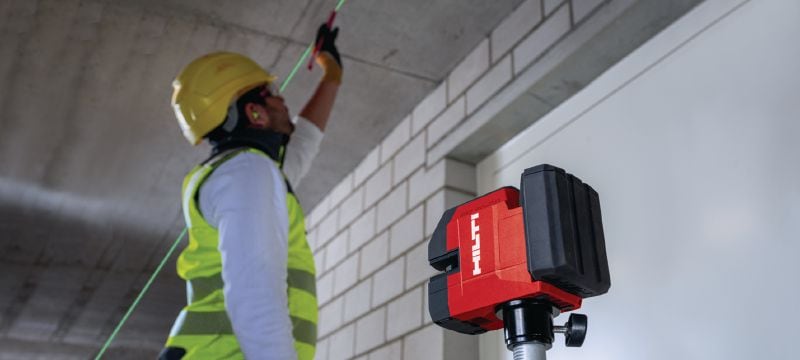

- Transferring track positions and fastening points from floors to ceilings (laser plumb bob)
- Transferring reference heights
