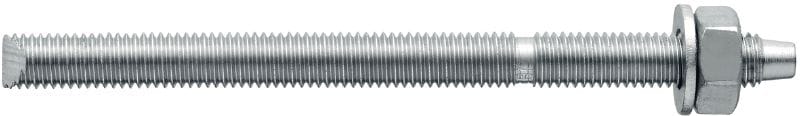

HAS-E-5.8 Anchor rod
New productItem #r1067
High-performance anchor rod for adhesive capsules in concrete (5.8 carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Drill bit diameter: 28 mm
- Environmental conditions: Dry indoor
Share
Customers also searched for Chemical bolt, I-bolt, Threaded rod, Anchor bolt or chemical anchor
Features
- Large range of anchor rod sizes (M8-M24)
- Designed for use with Hilti HVU capsules in solid concrete
- Optimised design
- Features a chisel tip to cut and mix the Hilti HVU capsule, embedment marking for easy setting and a conical head (M8-M24 only) to be used with separate setting tool
- Short spacing and edge distances
Applications
- Suitable for fastenings in concrete and other materials in combination with the relevant Hilti HIT injectable adhesive mortar
- Suitable for fastenings in concrete in combination with Hilti HVU capsules
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- ETA 11/0354 for HIT-CT 1 injection mortar for anchoring applications, English, [ 868.2 kB ]
- ETA 05/0255 for HVU adhesive capsules (ETAG 001-05, Option 7), English, German, Polish, [ 12.3 MB ]
- ETA-18/0745_HIT-RE 500 V3_Anchor_EC2_100years_102018, English, French, [ 2.2 MB ]
- ETA_16/0515_HVU2_capsule_022023, English, German, Polish, [ 5.6 MB ]
- ETA-20/0541_HIT-RE 500 V4_Anchor_EC2_100years_112021, English, German, Polish, French, [ 8.9 MB ]
- ETA-19/0601 HIT-HY 200-A/R V3 Anchoring Jun-2023, English, German, Polish, [ 21.5 MB ]
-
- Instruction for use UE/CE HIT/HVU, Italian, German, Russia, Swedish, Turkish, Ukrainian, Arabic, French, Portuguese, Sardinian, Malay, Spanish, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 569.2 kB ]
