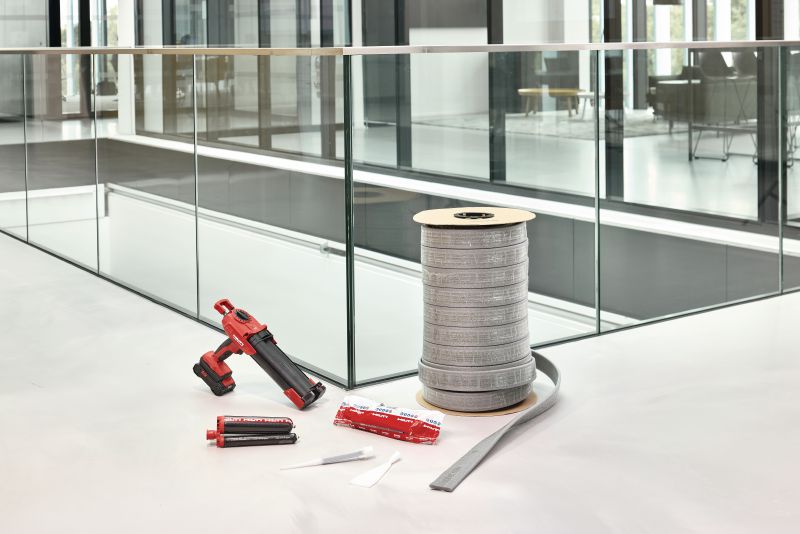

HIT-Glass balustrade installation kit
New productItem #r22143818

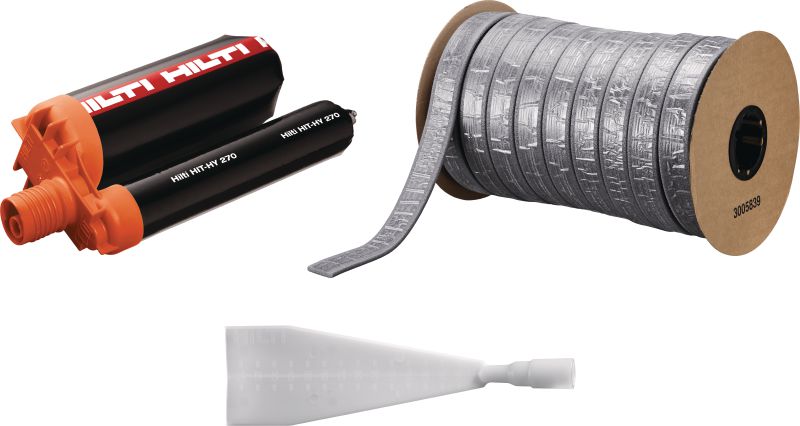

Installation kit for installing glass balustrades and handrails, including HIT-HY 270 mortar, EP foam positioning aids and HIT-RE 60-glass mixer attachments
- Storage and transportation temperature range: 5 - 25 °C
Features & Applications
- Faster glass pane installations – instal glass-balustrades and handrails up to 2.5 times faster than traditional installation methods thanks to an innovative adhesive installation system

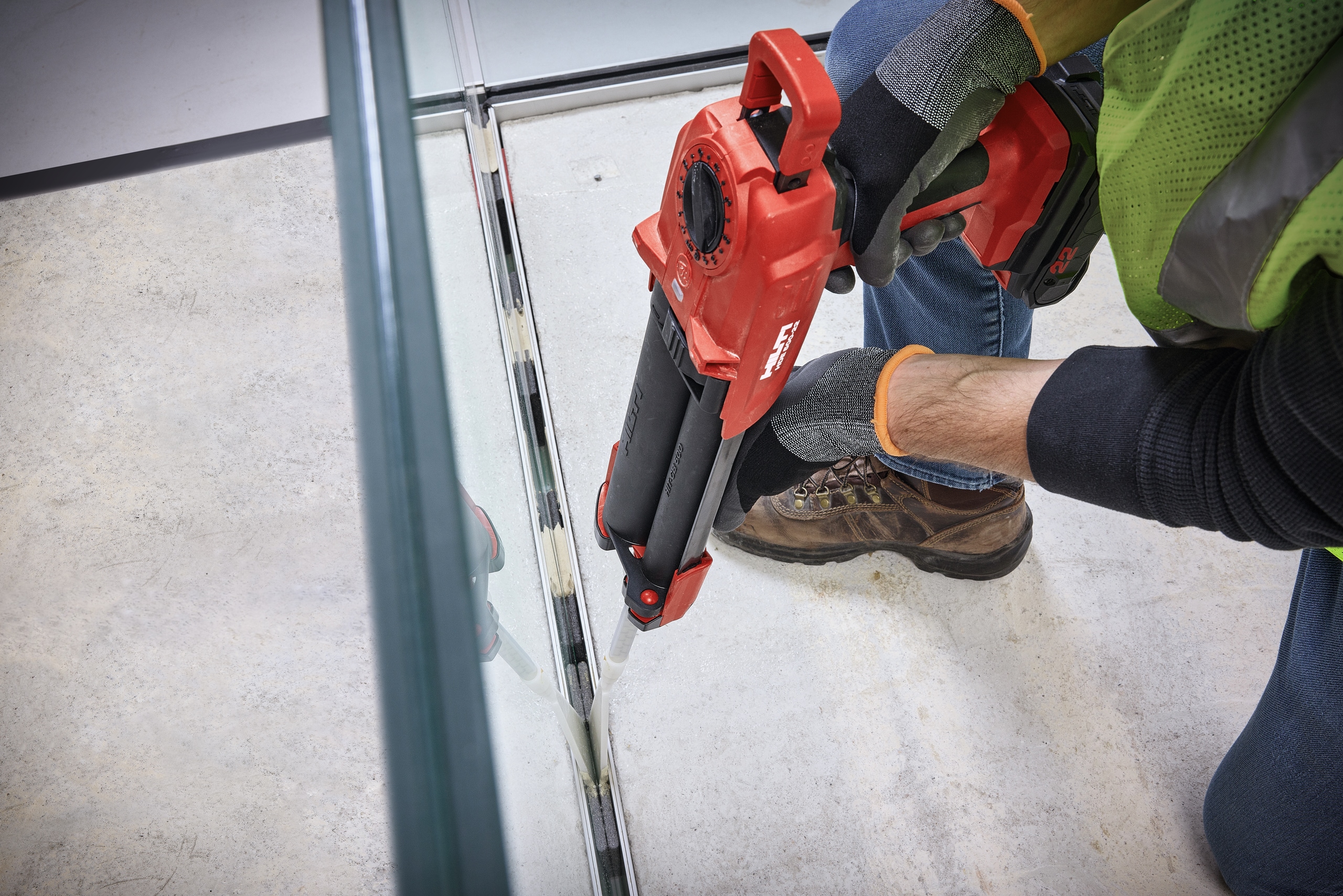

- Enhanced safety – HIT-RE 60 Glass mixer attachment enables mortar injection from the inner side of the glass pane, eliminating the risk associated with working on the exposed side panels at height
- Simplified maintenance – the HIT-HY 270 mortar does not bond to the glass, allowing you to easily remove and replace panes as needed
- Do more with less – the HIT-Glass system enables design optimisation, helping to reduce overall mortar consumption and material costs
- User friendly system for glass balustrade installation – automatic mixing of the components helps to ensure high quality mortar and reliable installations every time
- Ideal for serial installation of glass panels into metal shoes
- Fastening glass panes for internal and external glass balustrades and handrails
- Fastening glass panes on curved and vertically inclined surfaces (up to 35°) in glass balustrade applications
Technical Data
Documents & Videos
HIT-Glass system
A faster, simpler, and safer solution for glass balustrades and handrails
Glass balustrades and handrails can be complex and time-consuming to design, install and maintain. But with the HIT-Glass system we've simplified the whole process. For installers, the HIT-Glass system helps provide a faster, simpler and safer method for the glazing of glass balustrades and handrails. For engineers, HIT-Glass offers high-performing, code-compliant, and value-engineered designs thanks to Hilti PROFIS Engineering software. You also get greater peace of mind as the HIT-Glass system simplifies installation, helping to reduce human error during installation.
For installers: Benefits of HIT-Glass for glass balustrades
Increased productivity
Install glass-balustrades up to 2.5 times faster than traditional installation methods, depending on conditions,
Enhanced safety
Inject mortar all from the inner side of the glass pane, reducing the height risk of working on the exposed side panels.
Simplified maintenance
Remove and replace glass panels with ease – unlike grout, HIT-HY 270 adhesive anchor doesn't chemically bond to the glass or metal shoe.
Reduced waste
The HIT-Glass foam positioning aids act like formwork for the mortar. Only the mortar you need for your application goes into the metal shoe.
How HIT-Glass balustrade installation works
High-performing HIT HY-270 adhesive anchor plus dedicated accesories
HIT-Glass is an end-to-end system for the installation and maintenance of glass balustrades and handrails. Watch the video for a step-by-step overview of how it works.
For engineers: Benefits of HIT-Glass system
Code-compliant, efficient design of glass balustrades and handrails
The HIT-Glass method has been tested to industry standards, including ASTM E935-13, ASTM E 2353-21, and DIN 18008-4 Appendix A; providing specifiers with code-compliant solutions and greater peace of mind.
Read our expert article for more in-depth information on the HIT-Glass calculation methodology used in PROFIS Engineering software, the test standards used during the HIT-Glass system assessment, and more.
HIT-HY 270 Adhesive
Ultimate-performance injectable hybrid mortar for strong, reliable and easy installations
Shop HIT-Glass mortar
HDE 500-22 Cordless adhesive dispenser
Nuron battery-powered adhesive anchor dispenser with dosing wheel to help reduce mortar wastage.
Shop cordless adhesive dispensers
HIT-CB 500 Black cartridge holder
Cartridge holder for use with all Hilti 3:1 adhesive anchor black cartridges
Shop adhesive cartridge holders
HIT-Glass foam positioning aid
Foam positioning aid to quickly align and hold glass panes securely in metal base rails
Shop foam positioning aids
HIT-Glass mixer attachment
Nozzle mixer attachment for injecting and spreading the HIT-HY 270 mortar
Shop mixer attachments
