Shear connector design software
New productItem #r7616706
Web-based application for designing composite beams according to Eurocode standards using nailed shear connectors
- System requirements: Computer with permanent Internet connection and latest version of Internet browser IE, Firefox, Chrome
- Security and authorizations: Connection over secure http (https)
Highlights

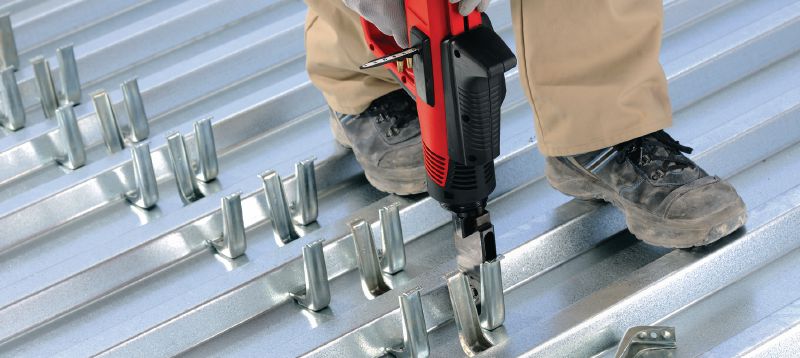

Try it out instantly: this is a free, web-based tool. There’s nothing to download. Simply visit shearconnectordesign.hilti.com to get started. All you have to enter is critical design input and restraints, define load combinations and position connectors. In seconds, the final report will show you calculation descriptions, designs and positioning drawings to streamline installation of nailed shear connectors on the jobsite.
You can use this software for: plastic analysis of composite beam according to Eurocode 4 and National Annexes; designs for simply supported solid slab or slab with profiled sheeting, and new builds or renovation.
Shear connectors are a labor-saving, more reliable, and Eurocode-compliant way to avoid time-consuming welded studs. This simple design software gives you a transparent methodology for revolutionizing how you design composite beams. Furthermore, the software supports full and partial degree of shear connection to optimize the utilization of materials.
